$23,898.00
Hydrajaws M2050 Mid-Heavy Duty Fixing Testers enable engineers to confirm the holding power of anchors in most construction materials, either for the purpose of establishing safe working loads or to validate the correct installation of existing fixings. The tensile load of up to 50kN is applied to the fixing mechanically and hydraulics are used to register the load through an accurate digital gauge, making the tester very reliable.
The load spreading bridge keeps reaction loads away from the fixing. Fixings up to M16 may be located directly in the tester, while a variety of adaptors enable a wide range of other types and sizes to be tested.

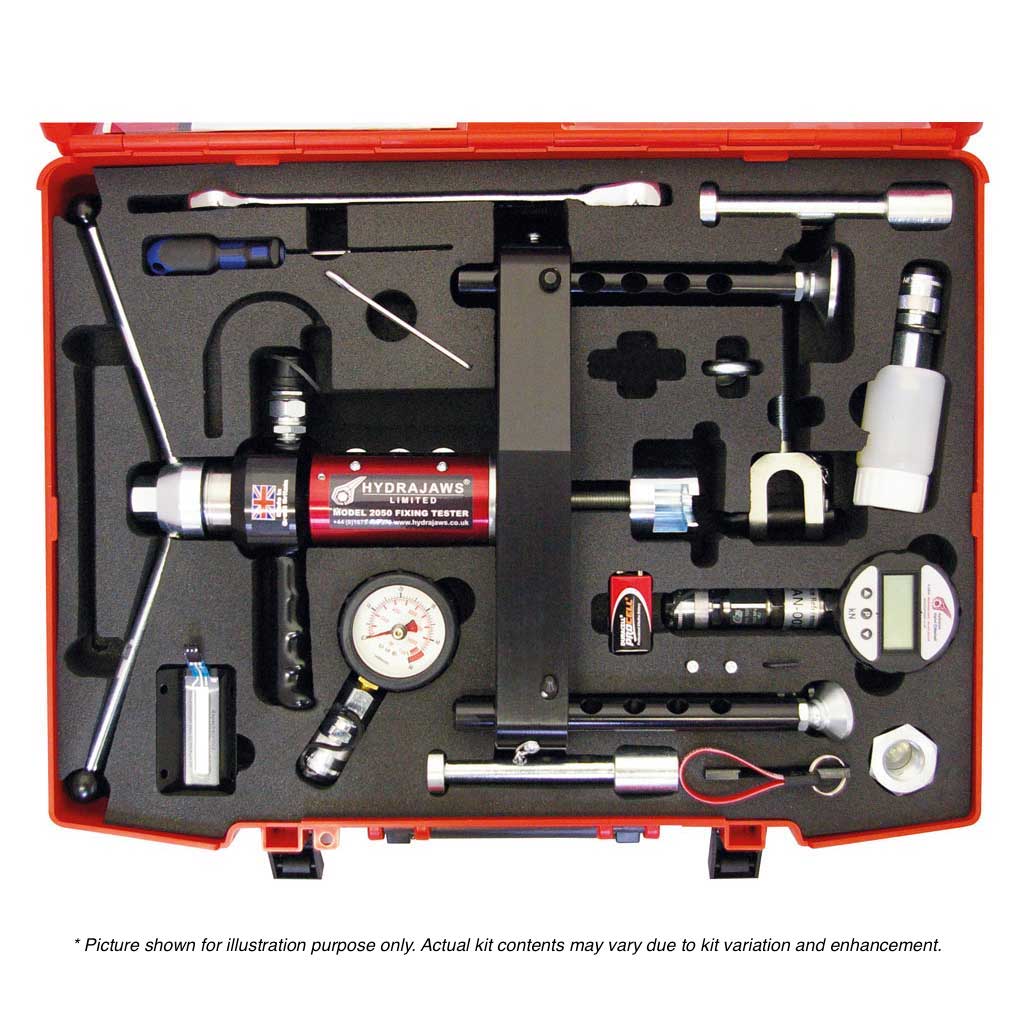

Kit Contents:
• Detachable dual scale 50kN digital gauge
• Load spreading bridge with adjustable telescopic legs and swivel feet
• Bolt tester adaptor with M12 locking adaptor
• Turning Handle with 22mm integrated nut (for use in confined spaces)
• Two threaded button adaptors (M10 and M12)
• Six slotted button adaptors (4.5, 5.5, 6.5, 8.5, 10.5, 12.5)
• M12 Ringbolt Adaptor Clevis
• M16, M20 & M24 Threaded Stud Adaptors
• Calibration certificate (valid for 12 months)
• Robust carry case
• Full operating instructions
Pull-out load range: 0-50kN/lb/f
Weight: Tester only 2.5kg, Gross Box weight 14kg
Effective stroke: 50mm
Stroke scale: 0-50mm
Load gauge: Interchangeable
Casing: Aluminum
Loading jaw: Pivot-able through 360 °
Operating handle: Standard size with integrated 24mm nut for confined spaces
Type: Accessories
